Example for context-specific TRN: perturbation of STARR-seq¶
Inference of transcriptional regulatory networks (TRNs) at specific loci is a complex and dynamic process. In this tutorial, we will guide you through context-specific TRN analysis using ChromBERTs, using the example of modelling perturbation effect of STARR-seq.
Attention: You should go through thistutorialat first to get familiar with the basic usage of ChromBERT.
[1]:
import os
os.environ["CUDA_VISIBLE_DEVICES"] = "0" # to selected gpu used
os.environ["PROTOCOL_BUFFERS_PYTHON_IMPLEMENTATION"] = "python"
import sys
import torch
import numpy as np
import pandas as pd
from tqdm import tqdm
from matplotlib import pyplot as plt
import chrombert
from torchinfo import summary
import scipy
import h5py
from sklearn.metrics.pairwise import cosine_similarity
import lightning.pytorch as pl
basedir = os.path.expanduser("~/.cache/chrombert/data")
/home/yangdongxu/.local/lib/python3.10/site-packages/pandas/core/arrays/masked.py:60: UserWarning: Pandas requires version '1.3.6' or newer of 'bottleneck' (version '1.3.5' currently installed).
from pandas.core import (
Fine-tune¶
Dataset¶
The first step is to prepare the dataset. The dataset used for the perturbation task is similar to those used in other tasks, with the exception of the perturbation_object column, which specifies the perturbation target for each sample.
The perturbation_object can contain a list of data accessions joined by ; or transcription regulator names joined by ;. If no perturbation is applied to a sample, set it as None or the string "none".
This parameter can be defined for each sample individually or applied universally to all samples in the dataset. For the latter, it should be set in the configuration file.
Note: Settings in the configuration will overwrite individual sample settings.
[2]:
# below is a example setting `perturbation_object` for each sample
supervised_train = os.path.join(basedir, "demo", "starr", "train.csv")
df_train = pd.read_csv(supervised_train)
df_train
[2]:
| chrom | start | end | build_region_index | label | perturbation_object | |
|---|---|---|---|---|---|---|
| 0 | chr1 | 199241128 | 199242128 | 141732 | 1.956989 | NaN |
| 1 | chr1 | 107707622 | 107708622 | 87175 | 2.505805 | NaN |
| 2 | chr10 | 127935569 | 127936569 | 281197 | 2.637493 | NaN |
| 3 | chr2 | 72258130 | 72259130 | 975449 | 1.491235 | NaN |
| 4 | chr8 | 33612518 | 33613518 | 1889869 | 1.761900 | NaN |
| ... | ... | ... | ... | ... | ... | ... |
| 34813 | chr4 | 1388788 | 1389788 | 1355108 | 3.686819 | GSM1121096;GSM1296385;GSM1313922 |
| 34814 | chrX | 3651041 | 3652041 | 2061995 | 0.914363 | GSM602291;GSM449527;GSM525270;GSM525268;GSM393... |
| 34815 | chr5 | 135488689 | 135489689 | 1580262 | 1.735307 | GSM971946;GSM1247824;GSM1328971;GSM1665999;GSM... |
| 34816 | chr10 | 87317757 | 87318757 | 247977 | 1.701492 | GSM971946;GSM1247824;GSM1328971;GSM1665999;GSM... |
| 34817 | chr11 | 111957724 | 111958724 | 366599 | 2.091776 | GSM602291;GSM449527;GSM525270;GSM525268;GSM393... |
34818 rows × 6 columns
[3]:
dc = chrombert.get_preset_dataset_config(
"general", supervised_file = supervised_train,
perturbation = True,
perturbation_value = 0 # Perturbation value controls the signal level:
# 0: Complete signal removal (similar to knock-out)
# 1-3: Intermediate signal reduction
# 4: Signal amplification (similar to over-expression)
# Optional: Override perturbation targets by setting perturbation_object
# Example: perturbation_object = "EP300;CREBBP" will perturb EP300 and CREBBP signals
)
print(dc)
update path: hdf5_file = hg38_6k_1kb.hdf5
update path: meta_file = config/hg38_6k_meta.json
{
"hdf5_file": "/home/yangdongxu/.cache/chrombert/data/hg38_6k_1kb.hdf5",
"supervised_file": "/home/yangdongxu/.cache/chrombert/data/demo/starr/train.csv",
"kind": "GeneralDataset",
"meta_file": "/home/yangdongxu/.cache/chrombert/data/config/hg38_6k_meta.json",
"ignore": false,
"ignore_object": null,
"batch_size": 8,
"num_workers": 20,
"shuffle": false,
"pin_memory": true,
"perturbation": true,
"perturbation_object": null,
"perturbation_value": 0,
"prompt_kind": null,
"prompt_regulator": null,
"prompt_regulator_cache_file": null,
"prompt_celltype": null,
"prompt_celltype_cache_file": null,
"prompt_regulator_cache_pin_memory": false,
"prompt_regulator_cache_limit": 3,
"fasta_file": null,
"flank_window": 0
}
[4]:
ds = dc.init_dataset()
# Example of perturbed dataset entry
# input_ids contains tokenized sequence where values 5-9 represent signal levels:
# 5: No signal (complete perturbation)
# 6-8: Intermediate signal levels
# 9: Maximum signal level
ds[1]
use perturbation_object in supervised_file
[4]:
{'input_ids': tensor([5, 6, 5, ..., 6, 6, 5], dtype=torch.int8),
'position_ids': tensor([ 1, 2, 3, ..., 6389, 6390, 6391]),
'region': tensor([ 1, 107165000, 107166000], dtype=torch.int32),
'build_region_index': 87175,
'label': 2.505804511612648}
The dataset can be used in combination with the ignore functionality. In this case, we omit all other regulators and focus solely on transcription factors.
[5]:
trs_all = pd.read_csv("~/.cache/chrombert/data/config/hg38_6k_regulators_list.txt", sep="\t", header=None)
tfs_all = pd.read_csv("~/.cache/chrombert/data/config/hg38_6k_factors_list.txt", sep="\t", header=None)
trs_nontf = ";".join(np.setdiff1d(trs_all, tfs_all))
trs_nontf
[5]:
'5hmC;ATAC-seq;DNase;FAIRE;H1.0;H1.4;H2A;H2A.Bbd;H2A.Z;H2A.Zac;H2AFX;H2AFY;H2AK119ub;H2AK5ac;H2AX;H2AZ;H2AZK4ac, H2AZK7ac, H2AZK11ac;H2AZac;H2BK120ac;H2BK120ub;H2BK12ac;H2BK15ac;H2BK20ac;H2BK5ac;H2Bub;H3;H3-T45ph;H3.3;H3.3,H2A.Z;H3F3A;H3F3B;H3K122ac;H3K14ac;H3K18ac;H3K18cr;H3K23ac;H3K23me2;H3K27ac;H3K27me1;H3K27me3;H3K27me3/H3K4me3;H3K36ac;H3K36me1;H3K36me2;H3K36me3;H3K4ac;H3K4me1;H3K4me2;H3K4me3;H3K56ac;H3K79me1;H3K79me2;H3K79me3;H3K9/14ac;H3K9K14ac;H3K9ac;H3K9me1;H3K9me2;H3K9me3;H3Kac;H3R26Cit;H3T11ph;H3T6ph;H3Y;H3ac;H4;H4K12ac;H4K16ac;H4K20me1;H4K20me3;H4K5ac;H4K5ac, H4K8ac, H4K12ac, H4K16ac;H4K8ac;H4K91ac;H4TetraAc;H4ac;Histone Lysine Acetylation;Histone Lysine Crotonylation;Input;Rloop;macroH2A1;macroH2A2'
[6]:
ignores=trs_nontf
dc = chrombert.get_preset_dataset_config(
"general", supervised_file = supervised_train,
perturbation = True,
perturbation_value = 0, # choose from [0,1,2,3,4]
# Optional: Override perturbation targets by setting perturbation_object
# Example: perturbation_object = "EP300;CREBBP" will perturb EP300 and CREBBP signals
ignore = True,
ignore_object = ignores,
batch_size = 1
)
ds = dc.init_dataset()
ignore_index = ds[1]["ignore_index"]
ds[1]
update path: hdf5_file = hg38_6k_1kb.hdf5
update path: meta_file = config/hg38_6k_meta.json
use perturbation_object in supervised_file
[6]:
{'input_ids': tensor([6, 6, 6, ..., 5, 6, 5], dtype=torch.int8),
'position_ids': tensor([ 953, 959, 1147, ..., 6388, 6389, 6391]),
'region': tensor([ 1, 107165000, 107166000], dtype=torch.int32),
'build_region_index': 87175,
'ignore_index': (array([2326, 1465, 2113, ..., 223, 2765, 787]),
array([ 0, 27, 146, 213, 276, 277, 278, 279, 280, 281, 282, 283, 284,
285, 286, 287, 288, 289, 290, 291, 292, 293, 294, 295, 296, 297,
298, 299, 300, 301, 302, 303, 304, 305, 306, 307, 308, 309, 310,
311, 312, 313, 314, 315, 316, 317, 318, 319, 320, 321, 322, 323,
324, 325, 326, 327, 328, 329, 330, 331, 332, 333, 334, 335, 336,
337, 338, 339, 340, 341, 342, 343, 344, 345, 346, 347, 369, 370,
406, 474, 475, 672])),
'label': 2.505804511612648}
Load model¶
Loading the model follows the same procedure as for other tasks.
[7]:
mc = chrombert.get_preset_model_config(
"general",
ignore = True,
ignore_index = ignore_index,
dropout = 0.1 # to fine-tune the model
)
update path: mtx_mask = config/hg38_6k_mask_matrix.tsv
update path: pretrain_ckpt = checkpoint/hg38_6k_1kb_pretrain.ckpt
[8]:
model = mc.init_model().cuda().bfloat16()
model.freeze_pretrain(trainable=2)
summary(model)
use organisim hg38; max sequence length is 6391
Ignoring 3057 cistromes and 82 regulators
[8]:
================================================================================
Layer (type:depth-idx) Param #
================================================================================
ChromBERTGeneral --
├─ChromBERT: 1-1 --
│ └─BERTEmbedding: 2-1 --
│ │ └─TokenEmbedding: 3-1 (7,680)
│ │ └─PositionalEmbedding: 3-2 (4,909,056)
│ │ └─Dropout: 3-3 --
│ └─ModuleList: 2-2 --
│ │ └─EncoderTransformerBlock: 3-4 (6,497,280)
│ │ └─EncoderTransformerBlock: 3-5 (6,497,280)
│ │ └─EncoderTransformerBlock: 3-6 (6,497,280)
│ │ └─EncoderTransformerBlock: 3-7 (6,497,280)
│ │ └─EncoderTransformerBlock: 3-8 (6,497,280)
│ │ └─EncoderTransformerBlock: 3-9 (6,497,280)
│ │ └─EncoderTransformerBlock: 3-10 6,497,280
│ │ └─EncoderTransformerBlock: 3-11 6,497,280
├─GeneralHeader: 1-2 --
│ └─CistromeEmbeddingManager: 2-3 --
│ └─Conv2d: 2-4 769
│ └─ReLU: 2-5 --
│ └─ResidualBlock: 2-6 --
│ │ └─Linear: 3-12 1,015,808
│ │ └─Linear: 3-13 1,049,600
│ │ └─LayerNorm: 3-14 2,048
│ │ └─Linear: 3-15 1,015,808
│ │ └─Dropout: 3-16 --
│ └─ResidualBlock: 2-7 --
│ │ └─Linear: 3-17 787,200
│ │ └─Linear: 3-18 590,592
│ │ └─LayerNorm: 3-19 1,536
│ │ └─Linear: 3-20 787,200
│ │ └─Dropout: 3-21 --
│ └─ResidualBlock: 2-8 --
│ │ └─Linear: 3-22 196,864
│ │ └─Linear: 3-23 65,792
│ │ └─LayerNorm: 3-24 512
│ │ └─Linear: 3-25 196,864
│ │ └─Dropout: 3-26 --
│ └─Linear: 2-9 257
================================================================================
Total params: 62,605,826
Trainable params: 18,705,410
Non-trainable params: 43,900,416
================================================================================
Fine-Tune¶
We provide a simple fine-tuning demonstration here. For practical applications, please refer to Compiled Scripts.
[9]:
data_module = chrombert.LitChromBERTFTDataModule(
config = dc.clone(batch_size=8),
train_params = dict(supervised_file = os.path.join(basedir, "demo", "starr", "train.csv")),
val_params = dict(supervised_file = os.path.join(basedir, "demo", "starr", "valid.csv")),
test_params = dict(supervised_file = os.path.join(basedir, "demo", "starr", "test.csv")),
)
data_module
[9]:
<chrombert.finetune.dataset.data_module.LitChromBERTFTDataModule at 0x7f035eaeb220>
[10]:
# Configure training parameters for demonstration purposes
# Note: These parameters are intentionally set for quick tutorial execution and are not optimal for production use
# For recommended hyperparameters, please refer to our manuscript
# Training time: ~30 minutes on NVIDIA A100 GPU
tc = chrombert.finetune.train.TrainConfig(
kind = "regression",
loss = "rmse", # RMSE loss is used since this is a regression task
max_epochs = 2, # Using minimal epochs for demo, increase for real training
lr = 1e-4, # Learning rate set high for demo, lower for better results
val_check_interval = 0.1, # Validate every 10% of training
limit_val_batches = 1.0, # Use full validation set
accumulate_grad_batches = 8, # Accumulate gradients over 8 batches
)
# Initialize PyTorch Lightning module with our model
pl_module = tc.init_pl_module(model)
type(pl_module)
/miniconda/lib/python3.10/site-packages/torchmetrics/utilities/prints.py:36: UserWarning: Metric `SpearmanCorrcoef` will save all targets and predictions in the buffer. For large datasets, this may lead to large memory footprint.
warnings.warn(*args, **kwargs)
[10]:
chrombert.finetune.train.pl_module.RegressionPLModule
[11]:
trainer = tc.init_trainer(precision = "bf16")
trainer.fit(pl_module, data_module)
/miniconda/lib/python3.10/site-packages/lightning/fabric/connector.py:555: UserWarning: bf16 is supported for historical reasons but its usage is discouraged. Please set your precision to bf16-mixed instead!
rank_zero_warn(
Using bfloat16 Automatic Mixed Precision (AMP)
GPU available: True (cuda), used: True
TPU available: False, using: 0 TPU cores
IPU available: False, using: 0 IPUs
HPU available: False, using: 0 HPUs
`Trainer(limit_val_batches=1.0)` was configured so 100% of the batches will be used..
You are using a CUDA device ('NVIDIA A100-PCIE-40GB') that has Tensor Cores. To properly utilize them, you should set `torch.set_float32_matmul_precision('medium' | 'high')` which will trade-off precision for performance. For more details, read https://pytorch.org/docs/stable/generated/torch.set_float32_matmul_precision.html#torch.set_float32_matmul_precision
Missing logger folder: /home/yangdongxu/work/source/repos/ChromBERT/examples/tutorials/lightning_logs/chrombert-ft
LOCAL_RANK: 0 - CUDA_VISIBLE_DEVICES: [0]
Loading `train_dataloader` to estimate number of stepping batches.
use perturbation_object in supervised_file
use perturbation_object in supervised_file
use perturbation_object in supervised_file
| Name | Type | Params
-------------------------------------------
0 | model | ChromBERTGeneral | 62.6 M
-------------------------------------------
18.7 M Trainable params
43.9 M Non-trainable params
62.6 M Total params
250.423 Total estimated model params size (MB)
/miniconda/lib/python3.10/site-packages/lightning/pytorch/trainer/connectors/data_connector.py:480: PossibleUserWarning: Your `val_dataloader`'s sampler has shuffling enabled, it is strongly recommended that you turn shuffling off for val/test dataloaders.
rank_zero_warn(
Epoch 0, global step 54: 'default_validation/rmse' reached 0.85965 (best 0.85965), saving model to '/home/yangdongxu/work/source/repos/ChromBERT/examples/tutorials/lightning_logs/chrombert-ft/version_0/checkpoints/epoch=0-step=54.ckpt' as top 1
Epoch 0, global step 108: 'default_validation/rmse' reached 0.84459 (best 0.84459), saving model to '/home/yangdongxu/work/source/repos/ChromBERT/examples/tutorials/lightning_logs/chrombert-ft/version_0/checkpoints/epoch=0-step=108.ckpt' as top 1
Epoch 0, global step 163: 'default_validation/rmse' was not in top 1
Epoch 0, global step 217: 'default_validation/rmse' reached 0.84353 (best 0.84353), saving model to '/home/yangdongxu/work/source/repos/ChromBERT/examples/tutorials/lightning_logs/chrombert-ft/version_0/checkpoints/epoch=0-step=217.ckpt' as top 1
Epoch 0, global step 271: 'default_validation/rmse' reached 0.84094 (best 0.84094), saving model to '/home/yangdongxu/work/source/repos/ChromBERT/examples/tutorials/lightning_logs/chrombert-ft/version_0/checkpoints/epoch=0-step=271.ckpt' as top 1
Epoch 0, global step 326: 'default_validation/rmse' reached 0.83853 (best 0.83853), saving model to '/home/yangdongxu/work/source/repos/ChromBERT/examples/tutorials/lightning_logs/chrombert-ft/version_0/checkpoints/epoch=0-step=326.ckpt' as top 1
Epoch 0, global step 380: 'default_validation/rmse' reached 0.83156 (best 0.83156), saving model to '/home/yangdongxu/work/source/repos/ChromBERT/examples/tutorials/lightning_logs/chrombert-ft/version_0/checkpoints/epoch=0-step=380.ckpt' as top 1
Epoch 0, global step 435: 'default_validation/rmse' was not in top 1
Epoch 0, global step 489: 'default_validation/rmse' was not in top 1
Epoch 0, global step 543: 'default_validation/rmse' reached 0.82666 (best 0.82666), saving model to '/home/yangdongxu/work/source/repos/ChromBERT/examples/tutorials/lightning_logs/chrombert-ft/version_0/checkpoints/epoch=0-step=543.ckpt' as top 1
Epoch 1, global step 599: 'default_validation/rmse' reached 0.82323 (best 0.82323), saving model to '/home/yangdongxu/work/source/repos/ChromBERT/examples/tutorials/lightning_logs/chrombert-ft/version_0/checkpoints/epoch=1-step=599.ckpt' as top 1
Epoch 1, global step 653: 'default_validation/rmse' reached 0.82259 (best 0.82259), saving model to '/home/yangdongxu/work/source/repos/ChromBERT/examples/tutorials/lightning_logs/chrombert-ft/version_0/checkpoints/epoch=1-step=653.ckpt' as top 1
Epoch 1, global step 708: 'default_validation/rmse' reached 0.81993 (best 0.81993), saving model to '/home/yangdongxu/work/source/repos/ChromBERT/examples/tutorials/lightning_logs/chrombert-ft/version_0/checkpoints/epoch=1-step=708.ckpt' as top 1
Epoch 1, global step 762: 'default_validation/rmse' reached 0.81638 (best 0.81638), saving model to '/home/yangdongxu/work/source/repos/ChromBERT/examples/tutorials/lightning_logs/chrombert-ft/version_0/checkpoints/epoch=1-step=762.ckpt' as top 1
Epoch 1, global step 816: 'default_validation/rmse' reached 0.81425 (best 0.81425), saving model to '/home/yangdongxu/work/source/repos/ChromBERT/examples/tutorials/lightning_logs/chrombert-ft/version_0/checkpoints/epoch=1-step=816.ckpt' as top 1
Epoch 1, global step 871: 'default_validation/rmse' reached 0.81100 (best 0.81100), saving model to '/home/yangdongxu/work/source/repos/ChromBERT/examples/tutorials/lightning_logs/chrombert-ft/version_0/checkpoints/epoch=1-step=871.ckpt' as top 1
Epoch 1, global step 925: 'default_validation/rmse' reached 0.80984 (best 0.80984), saving model to '/home/yangdongxu/work/source/repos/ChromBERT/examples/tutorials/lightning_logs/chrombert-ft/version_0/checkpoints/epoch=1-step=925.ckpt' as top 1
Epoch 1, global step 980: 'default_validation/rmse' reached 0.80888 (best 0.80888), saving model to '/home/yangdongxu/work/source/repos/ChromBERT/examples/tutorials/lightning_logs/chrombert-ft/version_0/checkpoints/epoch=1-step=980.ckpt' as top 1
Epoch 1, global step 1034: 'default_validation/rmse' reached 0.80849 (best 0.80849), saving model to '/home/yangdongxu/work/source/repos/ChromBERT/examples/tutorials/lightning_logs/chrombert-ft/version_0/checkpoints/epoch=1-step=1034.ckpt' as top 1
Epoch 1, global step 1088: 'default_validation/rmse' was not in top 1
`Trainer.fit` stopped: `max_epochs=2` reached.
Checkpoints will be saved in the lightning_logs directory automatically, and the last checkpoint can be saved as follows:
[12]:
if not os.path.exists("tmp_starr"):
os.makedirs("tmp_starr")
pl_module.save_ckpt(os.path.join("tmp_starr", "starr.ckpt"))
Load fine-tuned model¶
Load model¶
[13]:
# we load the model from the last checkpoint file because of insufficient training.
# However, it's recommend to check other checkpoints to avoid over-fitting.
ckpt = os.path.join("tmp_starr", "starr.ckpt")
[14]:
# Load the model from the checkpoint file
model = chrombert.get_preset_model_config(
"general", ignore = True, ignore_index = ignore_index,
dropout = 0,
finetune_ckpt = os.path.abspath(ckpt)
).init_model().cuda().bfloat16().eval()
summary(model)
update path: mtx_mask = config/hg38_6k_mask_matrix.tsv
update path: pretrain_ckpt = checkpoint/hg38_6k_1kb_pretrain.ckpt
update path: finetune_ckpt = /home/yangdongxu/work/source/repos/ChromBERT/examples/tutorials/tmp_starr/starr.ckpt
use organisim hg38; max sequence length is 6391
Ignoring 3057 cistromes and 82 regulators
Loading checkpoint from /home/yangdongxu/work/source/repos/ChromBERT/examples/tutorials/tmp_starr/starr.ckpt
Loaded 110/110 parameters
[14]:
================================================================================
Layer (type:depth-idx) Param #
================================================================================
ChromBERTGeneral --
├─ChromBERT: 1-1 --
│ └─BERTEmbedding: 2-1 --
│ │ └─TokenEmbedding: 3-1 7,680
│ │ └─PositionalEmbedding: 3-2 4,909,056
│ │ └─Dropout: 3-3 --
│ └─ModuleList: 2-2 --
│ │ └─EncoderTransformerBlock: 3-4 6,497,280
│ │ └─EncoderTransformerBlock: 3-5 6,497,280
│ │ └─EncoderTransformerBlock: 3-6 6,497,280
│ │ └─EncoderTransformerBlock: 3-7 6,497,280
│ │ └─EncoderTransformerBlock: 3-8 6,497,280
│ │ └─EncoderTransformerBlock: 3-9 6,497,280
│ │ └─EncoderTransformerBlock: 3-10 6,497,280
│ │ └─EncoderTransformerBlock: 3-11 6,497,280
├─GeneralHeader: 1-2 --
│ └─CistromeEmbeddingManager: 2-3 --
│ └─Conv2d: 2-4 769
│ └─ReLU: 2-5 --
│ └─ResidualBlock: 2-6 --
│ │ └─Linear: 3-12 1,015,808
│ │ └─Linear: 3-13 1,049,600
│ │ └─LayerNorm: 3-14 2,048
│ │ └─Linear: 3-15 1,015,808
│ │ └─Dropout: 3-16 --
│ └─ResidualBlock: 2-7 --
│ │ └─Linear: 3-17 787,200
│ │ └─Linear: 3-18 590,592
│ │ └─LayerNorm: 3-19 1,536
│ │ └─Linear: 3-20 787,200
│ │ └─Dropout: 3-21 --
│ └─ResidualBlock: 2-8 --
│ │ └─Linear: 3-22 196,864
│ │ └─Linear: 3-23 65,792
│ │ └─LayerNorm: 3-24 512
│ │ └─Linear: 3-25 196,864
│ │ └─Dropout: 3-26 --
│ └─Linear: 2-9 257
================================================================================
Total params: 62,605,826
Trainable params: 62,605,826
Non-trainable params: 0
================================================================================
Load dataset¶
In this tutorial, we use the following dataset to evaluate the model’s performance. The dataset has been transformed and reshaped for convenience.
The wt column represents the wild-type STARR-seq data, while the ep300 column contains the STARR-seq signal from EP300/CREBBP knockdown cells.
[15]:
supervised_file = os.path.join(basedir, "demo", "starr", "supervised.csv")
!head $supervised_file
chrom,start,end,build_region_index,wt,ep300,diff,kind
chr6,13307232,13308232,1627400,0.9889573548313711,1.38310498787305,0.39414763304167877,nochange
chr1,231663746,231664746,169607,2.4807076319328907,1.9394034879228463,-0.5413041440100443,other
chr10,1155940,1156940,184962,1.3925053029992234,0.8553238049917151,-0.5371814980075083,other
chrX,113511225,113512225,2114528,0.9910568962803128,1.1759059510981291,0.18484905481781633,nochange
chr1,103345556,103346556,84878,0.8908197542965414,0.0901858722270683,-0.8006338820694731,other
chr5,92694706,92695706,1548713,2.934648243515996,1.2105942864339372,-1.7240539570820588,decrease
chr10,115111759,115112759,270229,1.5381286882444107,1.390405495436994,-0.14772319280741675,nochange
chr4,5665727,5666727,1358762,1.335261459502083,1.7218760458360476,0.3866145863339645,nochange
chr3,77623151,77624151,1265465,2.313793644637294,2.2775156832307086,-0.03627796140658557,nochange
[16]:
df_supervised = pd.read_csv(supervised_file)
df_supervised
[16]:
| chrom | start | end | build_region_index | wt | ep300 | diff | kind | |
|---|---|---|---|---|---|---|---|---|
| 0 | chr6 | 13307232 | 13308232 | 1627400 | 0.988957 | 1.383105 | 0.394148 | nochange |
| 1 | chr1 | 231663746 | 231664746 | 169607 | 2.480708 | 1.939403 | -0.541304 | other |
| 2 | chr10 | 1155940 | 1156940 | 184962 | 1.392505 | 0.855324 | -0.537181 | other |
| 3 | chrX | 113511225 | 113512225 | 2114528 | 0.991057 | 1.175906 | 0.184849 | nochange |
| 4 | chr1 | 103345556 | 103346556 | 84878 | 0.890820 | 0.090186 | -0.800634 | other |
| ... | ... | ... | ... | ... | ... | ... | ... | ... |
| 716 | chr4 | 189862154 | 189863154 | 1481367 | 1.957393 | 0.597990 | -1.359403 | decrease |
| 717 | chr2 | 194444725 | 194445725 | 1059645 | 0.412500 | 0.639412 | 0.226912 | nochange |
| 718 | chr10 | 3509192 | 3510192 | 186897 | 1.316483 | 0.583072 | -0.733411 | other |
| 719 | chr5 | 173391003 | 173392003 | 1609640 | 1.145941 | 0.897721 | -0.248220 | nochange |
| 720 | chr5 | 78641823 | 78642823 | 1538612 | 3.260180 | 1.707335 | -1.552845 | decrease |
721 rows × 8 columns
[17]:
# We configure the dataset for wild-type and perturbed states.
# For the wild-type dataset, we set perturbation to False and perturbation_object to "none".
dc_wt = chrombert.get_preset_dataset_config(
"general",
ignore = True,
ignore_object = ignores,
perturbation = False, # for the wild-type dataset, we set perturbation to False
perturbation_object = "none", # we set it to "none" to make sure the perturbation is not applied
perturbation_value = 0,
supervised_file = supervised_file,
shuffle = False,
batch_size = 4
)
# For the perturbed dataset, we set perturbation to True and perturbation_object to "crebbp;ep300" to apply the perturbation.
dc_ep300 = dc_wt.clone(perturbation=True,perturbation_object = "crebbp;ep300")
print(dc_wt), print(dc_ep300)
update path: hdf5_file = hg38_6k_1kb.hdf5
update path: meta_file = config/hg38_6k_meta.json
{
"hdf5_file": "/home/yangdongxu/.cache/chrombert/data/hg38_6k_1kb.hdf5",
"supervised_file": "/home/yangdongxu/.cache/chrombert/data/demo/starr/supervised.csv",
"kind": "GeneralDataset",
"meta_file": "/home/yangdongxu/.cache/chrombert/data/config/hg38_6k_meta.json",
"ignore": true,
"ignore_object": "5hmC;ATAC-seq;DNase;FAIRE;H1.0;H1.4;H2A;H2A.Bbd;H2A.Z;H2A.Zac;H2AFX;H2AFY;H2AK119ub;H2AK5ac;H2AX;H2AZ;H2AZK4ac, H2AZK7ac, H2AZK11ac;H2AZac;H2BK120ac;H2BK120ub;H2BK12ac;H2BK15ac;H2BK20ac;H2BK5ac;H2Bub;H3;H3-T45ph;H3.3;H3.3,H2A.Z;H3F3A;H3F3B;H3K122ac;H3K14ac;H3K18ac;H3K18cr;H3K23ac;H3K23me2;H3K27ac;H3K27me1;H3K27me3;H3K27me3/H3K4me3;H3K36ac;H3K36me1;H3K36me2;H3K36me3;H3K4ac;H3K4me1;H3K4me2;H3K4me3;H3K56ac;H3K79me1;H3K79me2;H3K79me3;H3K9/14ac;H3K9K14ac;H3K9ac;H3K9me1;H3K9me2;H3K9me3;H3Kac;H3R26Cit;H3T11ph;H3T6ph;H3Y;H3ac;H4;H4K12ac;H4K16ac;H4K20me1;H4K20me3;H4K5ac;H4K5ac, H4K8ac, H4K12ac, H4K16ac;H4K8ac;H4K91ac;H4TetraAc;H4ac;Histone Lysine Acetylation;Histone Lysine Crotonylation;Input;Rloop;macroH2A1;macroH2A2",
"batch_size": 4,
"num_workers": 20,
"shuffle": false,
"pin_memory": true,
"perturbation": false,
"perturbation_object": "none",
"perturbation_value": 0,
"prompt_kind": null,
"prompt_regulator": null,
"prompt_regulator_cache_file": null,
"prompt_celltype": null,
"prompt_celltype_cache_file": null,
"prompt_regulator_cache_pin_memory": false,
"prompt_regulator_cache_limit": 3,
"fasta_file": null,
"flank_window": 0
}
{
"hdf5_file": "/home/yangdongxu/.cache/chrombert/data/hg38_6k_1kb.hdf5",
"supervised_file": "/home/yangdongxu/.cache/chrombert/data/demo/starr/supervised.csv",
"kind": "GeneralDataset",
"meta_file": "/home/yangdongxu/.cache/chrombert/data/config/hg38_6k_meta.json",
"ignore": true,
"ignore_object": "5hmC;ATAC-seq;DNase;FAIRE;H1.0;H1.4;H2A;H2A.Bbd;H2A.Z;H2A.Zac;H2AFX;H2AFY;H2AK119ub;H2AK5ac;H2AX;H2AZ;H2AZK4ac, H2AZK7ac, H2AZK11ac;H2AZac;H2BK120ac;H2BK120ub;H2BK12ac;H2BK15ac;H2BK20ac;H2BK5ac;H2Bub;H3;H3-T45ph;H3.3;H3.3,H2A.Z;H3F3A;H3F3B;H3K122ac;H3K14ac;H3K18ac;H3K18cr;H3K23ac;H3K23me2;H3K27ac;H3K27me1;H3K27me3;H3K27me3/H3K4me3;H3K36ac;H3K36me1;H3K36me2;H3K36me3;H3K4ac;H3K4me1;H3K4me2;H3K4me3;H3K56ac;H3K79me1;H3K79me2;H3K79me3;H3K9/14ac;H3K9K14ac;H3K9ac;H3K9me1;H3K9me2;H3K9me3;H3Kac;H3R26Cit;H3T11ph;H3T6ph;H3Y;H3ac;H4;H4K12ac;H4K16ac;H4K20me1;H4K20me3;H4K5ac;H4K5ac, H4K8ac, H4K12ac, H4K16ac;H4K8ac;H4K91ac;H4TetraAc;H4ac;Histone Lysine Acetylation;Histone Lysine Crotonylation;Input;Rloop;macroH2A1;macroH2A2",
"batch_size": 4,
"num_workers": 20,
"shuffle": false,
"pin_memory": true,
"perturbation": true,
"perturbation_object": "crebbp;ep300",
"perturbation_value": 0,
"prompt_kind": null,
"prompt_regulator": null,
"prompt_regulator_cache_file": null,
"prompt_celltype": null,
"prompt_celltype_cache_file": null,
"prompt_regulator_cache_pin_memory": false,
"prompt_regulator_cache_limit": 3,
"fasta_file": null,
"flank_window": 0
}
[17]:
(None, None)
[18]:
# Initialize the datasets
ds_wt = dc_wt.init_dataset()
ds_ep300 = dc_ep300.init_dataset()
# Display the first sample from each dataset
ds_wt[1], ds_ep300[1]
Your supervised_file does not contain the 'label' column. Please verify whether ground truth column ('label') is required. If it is not needed, you may disregard this message.
Your supervised_file does not contain the 'label' column. Please verify whether ground truth column ('label') is required. If it is not needed, you may disregard this message.
use perturbation_object in dataset config which high priority than supervised_file
[18]:
({'input_ids': tensor([6, 6, 8, ..., 9, 6, 9], dtype=torch.int8),
'position_ids': tensor([ 953, 959, 1147, ..., 6388, 6389, 6391]),
'region': tensor([ 1, 231528000, 231529000], dtype=torch.int32),
'build_region_index': 169607,
'ignore_index': (array([2634, 2370, 1105, ..., 1994, 2237, 383]),
array([ 0, 27, 146, 213, 276, 277, 278, 279, 280, 281, 282, 283, 284,
285, 286, 287, 288, 289, 290, 291, 292, 293, 294, 295, 296, 297,
298, 299, 300, 301, 302, 303, 304, 305, 306, 307, 308, 309, 310,
311, 312, 313, 314, 315, 316, 317, 318, 319, 320, 321, 322, 323,
324, 325, 326, 327, 328, 329, 330, 331, 332, 333, 334, 335, 336,
337, 338, 339, 340, 341, 342, 343, 344, 345, 346, 347, 369, 370,
406, 474, 475, 672]))},
{'input_ids': tensor([6, 6, 8, ..., 9, 6, 9], dtype=torch.int8),
'position_ids': tensor([ 953, 959, 1147, ..., 6388, 6389, 6391]),
'region': tensor([ 1, 231528000, 231529000], dtype=torch.int32),
'build_region_index': 169607,
'ignore_index': (array([2634, 2370, 1105, ..., 1994, 2237, 383]),
array([ 0, 27, 146, 213, 276, 277, 278, 279, 280, 281, 282, 283, 284,
285, 286, 287, 288, 289, 290, 291, 292, 293, 294, 295, 296, 297,
298, 299, 300, 301, 302, 303, 304, 305, 306, 307, 308, 309, 310,
311, 312, 313, 314, 315, 316, 317, 318, 319, 320, 321, 322, 323,
324, 325, 326, 327, 328, 329, 330, 331, 332, 333, 334, 335, 336,
337, 338, 339, 340, 341, 342, 343, 344, 345, 346, 347, 369, 370,
406, 474, 475, 672]))})
[19]:
# some input signal levels are perturbed
np.bincount(ds_ep300[1]["input_ids"].numpy()), np.bincount(ds_wt[1]["input_ids"].numpy())
[19]:
(array([ 0, 0, 0, 0, 0, 112, 857, 220, 354, 1791]),
array([ 0, 0, 0, 0, 0, 61, 866, 224, 363, 1820]))
Forward: get predictions¶
[20]:
list_wt = []
list_ep300 = []
for (batch_wt, batch_ep300) in tqdm(zip(dc_wt.init_dataloader(), dc_ep300.init_dataloader())):
for k,v in batch_wt.items():
if isinstance(v, torch.Tensor):
batch_wt[k] = v.cuda()
batch_ep300[k] = batch_ep300[k].cuda()
with torch.no_grad():
logit_wt = model(batch_wt).float().cpu().numpy() # get the predictions of wild-type
logit_ep300 = model(batch_ep300).float().cpu().numpy() # get the predictions of EP300 perturbation
list_wt.append(logit_wt)
list_ep300.append(logit_ep300)
logits_wt = np.concatenate(list_wt, axis=0).reshape(-1)
logits_ep300 = np.concatenate(list_ep300, axis=0).reshape(-1)
Your supervised_file does not contain the 'label' column. Please verify whether ground truth column ('label') is required. If it is not needed, you may disregard this message.
Your supervised_file does not contain the 'label' column. Please verify whether ground truth column ('label') is required. If it is not needed, you may disregard this message.
use perturbation_object in dataset config which high priority than supervised_file
181it [00:15, 11.97it/s]
[21]:
logits_wt.shape, logits_ep300.shape
[21]:
((721,), (721,))
[22]:

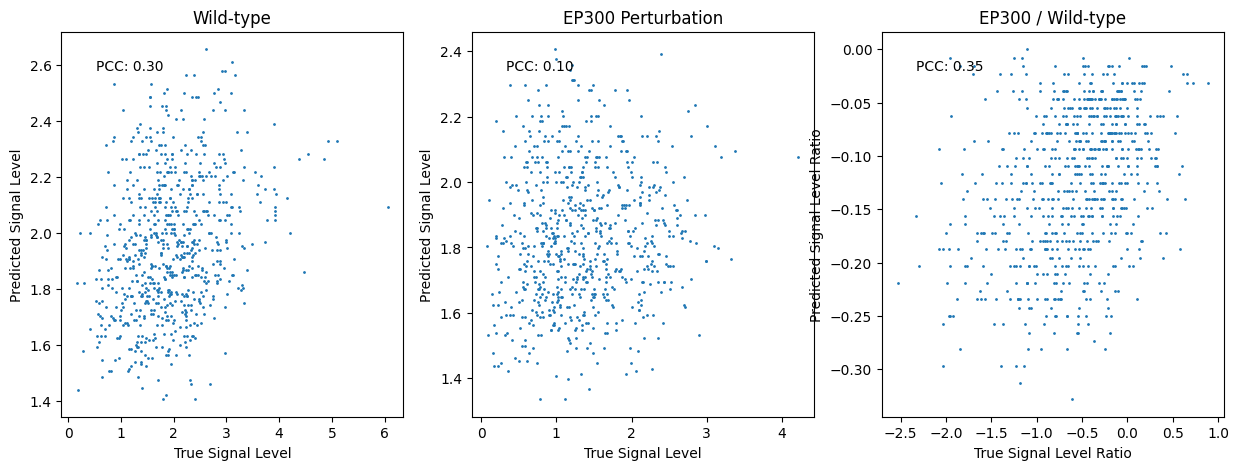

# We show the performance here.
# Note: the performance is not good enough because the model is not well-trained.
fig, axs = plt.subplots(1,3,figsize=(15,5))
signal_wt = df_supervised["wt"].values
signal_ep300 = df_supervised["ep300"].values
ax = axs[0]
ax.scatter(signal_wt, logits_wt, s=1)
ax.set_xlabel("True Signal Level")
ax.set_ylabel("Predicted Signal Level")
ax.set_title("Wild-type")
pcc = scipy.stats.pearsonr(signal_wt, logits_wt)[0]
ax.text(0.1, 0.9, f"PCC: {pcc:.2f}", transform=ax.transAxes)
ax = axs[1]
ax.scatter(signal_ep300, logits_ep300, s=1)
ax.set_xlabel("True Signal Level")
ax.set_ylabel("Predicted Signal Level")
ax.set_title("EP300 Perturbation")
pcc = scipy.stats.pearsonr(signal_ep300, logits_ep300)[0]
ax.text(0.1, 0.9, f"PCC: {pcc:.2f}", transform=ax.transAxes)
ax = axs[2]
logit_diff = logits_ep300 - logits_wt
signal_diff = signal_ep300 - signal_wt
ax.scatter(signal_diff, logit_diff, s=1)
ax.set_xlabel("True Signal Level Ratio")
ax.set_ylabel("Predicted Signal Level Ratio")
ax.set_title("EP300 / Wild-type")
pcc = scipy.stats.pearsonr(signal_diff, logit_diff)[0]
ax.text(0.1, 0.9, f"PCC: {pcc:.2f}", transform=ax.transAxes)
plt.show()
Forward: get embeddings¶
We use the regulator embedding from wild type and perturbed states to calculate distance of regulator embeddings.

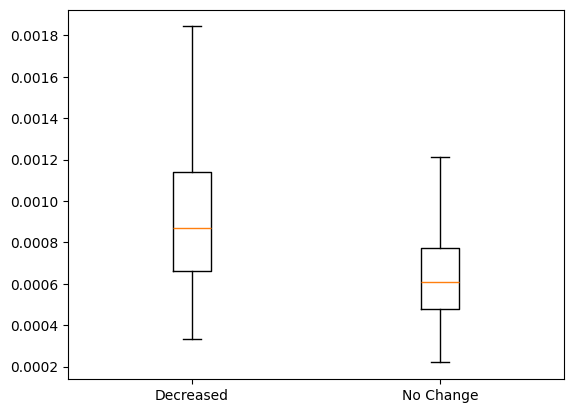

Intuitively, the distance of regulator embeddings on enhancers sensitive to EP300/CREBBP perturbation is larger than the non-sensitive ones, and regulators associated with EP300/CREBBP should have larger distance on sensitive enhancers.
[23]:
from chrombert.scripts.utils import HDF5Manager # We provide a convenient class for storing embeddings
if not os.path.exists("tmp_starr"):
os.makedirs("tmp_starr")
model_emb = model.get_embedding_manager()
dict_shapes = {
"region":((len(ds_wt), 4), int),
"wt":((len(ds_wt),len(model_emb.list_regulator), 768), np.float16),
"ep300":((len(ds_wt),len(model_emb.list_regulator), 768), np.float16)
} # initialize the shapes of the data to be stored in the HDF5 file
with HDF5Manager(os.path.join("tmp_starr","starr_emb.h5"), **dict_shapes) as h5:
for (batch_wt, batch_ep300) in tqdm(zip(dc_wt.init_dataloader(), dc_ep300.init_dataloader())):
region = np.concatenate([
batch_wt["region"].long().cpu().numpy(),
batch_wt["build_region_index"].long().cpu().unsqueeze(-1).numpy()
], axis = 1
)
for k,v in batch_wt.items():
if isinstance(v, torch.Tensor):
batch_wt[k] = v.cuda()
batch_ep300[k] = batch_ep300[k].cuda()
with torch.no_grad():
emb_wt = model_emb(batch_wt).float().cpu().numpy() # get the embeddings of wild-type
emb_ep300 = model_emb(batch_ep300).float().cpu().numpy() # get the embeddings of EP300 perturbation
h5.insert(
**{"region":region, "wt":emb_wt, "ep300":emb_ep300}
)
Ignoring 3057 cistromes and 82 regulators
Your supervised_file does not contain the 'label' column. Please verify whether ground truth column ('label') is required. If it is not needed, you may disregard this message.
Your supervised_file does not contain the 'label' column. Please verify whether ground truth column ('label') is required. If it is not needed, you may disregard this message.
use perturbation_object in dataset config which high priority than supervised_file
181it [02:11, 1.37it/s]
[24]:
list_factors = model_emb.list_regulator
list_factors[:10],len(list_factors)
[24]:
(['adnp',
'aebp2',
'aff1',
'aff4',
'ago1',
'ago2',
'ahr',
'ahrr',
'alkbh3',
'anp32e'],
991)
[25]:
# Distance of embeddings on sensitive enhancers
with h5py.File(os.path.join("tmp_starr","starr_emb.h5"), "r") as f:
emb_decrease_wt = f["wt"][df_supervised["kind"] == "decrease",...].mean(axis = 0)
emb_decrease_ep300 = f["ep300"][df_supervised["kind"] == "decrease",...].mean(axis = 0)
sims = np.diagonal(cosine_similarity(emb_decrease_wt, emb_decrease_ep300))
df_sim_decreased = pd.DataFrame({"factor": list_factors, "sim": sims,"source": "decreased"})
df_sim_decreased
[25]:
| factor | sim | source | |
|---|---|---|---|
| 0 | adnp | 0.999221 | decreased |
| 1 | aebp2 | 0.999145 | decreased |
| 2 | aff1 | 0.999035 | decreased |
| 3 | aff4 | 0.998830 | decreased |
| 4 | ago1 | 0.999297 | decreased |
| ... | ... | ... | ... |
| 986 | zscan5a | 0.999392 | decreased |
| 987 | zta | 0.999194 | decreased |
| 988 | zxdb | 0.999416 | decreased |
| 989 | zxdc | 0.999589 | decreased |
| 990 | zzz3 | 0.998278 | decreased |
991 rows × 3 columns
[26]:
# Distance of embeddings on non-sensitive enhancers
with h5py.File(os.path.join("tmp_starr","starr_emb.h5"), "r") as f:
emb_nochange_wt = f["wt"][df_supervised["kind"] == "nochange",...].mean(axis = 0)
emb_nochange_ep300 = f["ep300"][df_supervised["kind"] == "nochange",...].mean(axis = 0)
sims = np.diagonal(cosine_similarity(emb_nochange_wt, emb_nochange_ep300))
df_sim_nochange = pd.DataFrame({"factor": list_factors, "sim": sims,"source": "nochange"})
df_sim_nochange
[26]:
| factor | sim | source | |
|---|---|---|---|
| 0 | adnp | 0.999463 | nochange |
| 1 | aebp2 | 0.999323 | nochange |
| 2 | aff1 | 0.999344 | nochange |
| 3 | aff4 | 0.999247 | nochange |
| 4 | ago1 | 0.999504 | nochange |
| ... | ... | ... | ... |
| 986 | zscan5a | 0.999555 | nochange |
| 987 | zta | 0.999570 | nochange |
| 988 | zxdb | 0.999606 | nochange |
| 989 | zxdc | 0.999685 | nochange |
| 990 | zzz3 | 0.998991 | nochange |
991 rows × 3 columns
[27]:
# Stack the results
df_sim = pd.concat([df_sim_decreased, df_sim_nochange]).set_index(["factor","source"])["sim"].unstack()
df_shift = 1 - df_sim
df_shift
[27]:
| source | decreased | nochange |
|---|---|---|
| factor | ||
| adnp | 0.000779 | 0.000537 |
| aebp2 | 0.000855 | 0.000677 |
| aff1 | 0.000965 | 0.000656 |
| aff4 | 0.001170 | 0.000753 |
| ago1 | 0.000703 | 0.000496 |
| ... | ... | ... |
| zscan5a | 0.000608 | 0.000445 |
| zta | 0.000806 | 0.000430 |
| zxdb | 0.000584 | 0.000394 |
| zxdc | 0.000411 | 0.000315 |
| zzz3 | 0.001722 | 0.001009 |
991 rows × 2 columns
We observe larger embedding shift of EP300/CREBBP sensitive enhancers here
[28]:
# Boxplot of embedding shifts, showing larger shift on sensitive enhancers
plt.boxplot([df_shift["decreased"], df_shift["nochange"]], labels = ["Decreased", "No Change"], showfliers=False)
plt.show()
scipy.stats.ttest_ind(df_shift["decreased"], df_shift["nochange"])
/tmp/ipykernel_1705212/443859759.py:2: MatplotlibDeprecationWarning: The 'labels' parameter of boxplot() has been renamed 'tick_labels' since Matplotlib 3.9; support for the old name will be dropped in 3.11.
plt.boxplot([df_shift["decreased"], df_shift["nochange"]], labels = ["Decreased", "No Change"], showfliers=False)
[28]:
TtestResult(statistic=0.9246101672047551, pvalue=0.3552813911246604, df=1980.0)
We can also observe larger embedding shift of EP300/CREBBP associated regulators on sensitive enhancers.
[29]:
# we select top 50 factors with the highest cosine similarity with EP300
with h5py.File(os.path.join("tmp_starr","starr_emb.h5"), "r") as f:
emb_all_wt = f["wt"][:,...].mean(axis = 0)
ser_sim_with_ep300 = pd.DataFrame(data = cosine_similarity(emb_all_wt), columns= list_factors, index = list_factors)["ep300"]
ser_sim_with_ep300 = ser_sim_with_ep300.loc[~ser_sim_with_ep300.index.isin(["ep300","crebbp"])].sort_values(ascending = False).head(50)
ser_sim_with_ep300
[29]:
med1 0.912179
brd4 0.898527
smarca4 0.887474
myc 0.884520
foxm1 0.877207
tcf12 0.869119
rxra 0.864270
stat3 0.860204
nr3c1 0.856566
rela 0.854440
nipbl 0.851435
cdk9 0.844094
ets1 0.843467
tcf7l2 0.843425
sox2 0.835494
runx1 0.834055
e2f1 0.831583
cdk8 0.830999
stat1 0.830734
tal1 0.822797
sin3a 0.819663
hdac2 0.819198
smarcc1 0.816048
rbpj 0.815343
smad1 0.814176
tead4 0.811195
e2f4 0.810752
junb 0.810572
gabpa 0.809529
bcl11a 0.808997
chd1 0.808096
tp53 0.807762
sp1 0.807046
gata2 0.804436
hdac1 0.802669
smad3 0.802053
taf1 0.800188
hsf1 0.795786
gata3 0.795238
lyl1 0.794817
kdm1a 0.792298
zbtb17 0.788927
ezh2 0.788191
rnf2 0.788014
rest 0.787572
brca1 0.787291
smad4 0.785382
ubtf 0.781261
lef1 0.781023
zbtb33 0.778925
Name: ep300, dtype: float64
[30]:

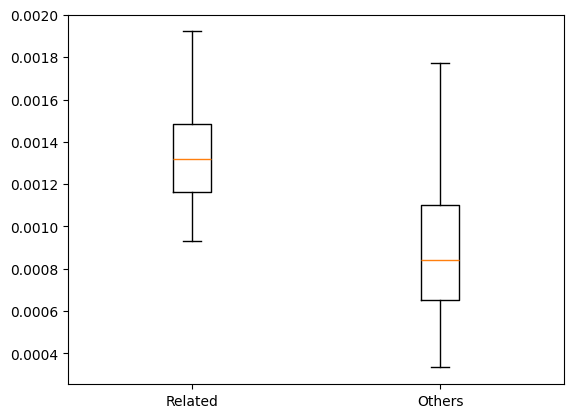

# Boxplot of embedding shifts, showing larger shift for EP300/CREBBP associated regulators
v1 = df_shift.loc[ser_sim_with_ep300.index,"decreased"]
v2 = df_shift.loc[~df_shift.index.isin(ser_sim_with_ep300.index),"decreased"]
plt.boxplot([v1, v2], labels = ["Related", "Others"], showfliers=False)
plt.show()
scipy.stats.mannwhitneyu(v1, v2)
/tmp/ipykernel_1705212/139458382.py:4: MatplotlibDeprecationWarning: The 'labels' parameter of boxplot() has been renamed 'tick_labels' since Matplotlib 3.9; support for the old name will be dropped in 3.11.
plt.boxplot([v1, v2], labels = ["Related", "Others"], showfliers=False)
[30]:
MannwhitneyuResult(statistic=39529.0, pvalue=4.8717532533893065e-16)
[ ]:
